The Structure And Principle of Double Insulated Wires: How Does Double Protection Improve Safety?

Views: 27     Author: Site Editor     Publish Time: 2025-07-12      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

In electrical engineering and industrial applications, wire safety is a crucial factor. As the power of equipment continues to increase and the working environment becomes increasingly complex, the traditional single-layer insulated wires have gradually shown limitations in terms of pressure resistance and environmental resistance. At this time, double insulated wires came into being, and with the double insulation layer structure, electrical safety and reliability have been significantly improved. This article will deeply analyze the structure, working principle, typical applications of double-layer insulated wires, and how to improve electricity safety through double protection.



1. Basic structure of double-layer insulated wires

The biggest difference between double-layer insulated wires and ordinary insulated electrical wires is that two independent insulation layers are wrapped around the conductor.

  • Inner insulation: mainly responsible for electrical insulation to prevent conductor leakage. PVC insulated wire or high-temperature materials are often used as the inner layer to ensure basic safety performance.

  • Outer insulation: It is responsible for enhancing wear resistance, moisture resistance, corrosion resistance, and mechanical damage resistance, providing an additional barrier for the wires.

These two lines of defense overlap each other. Even if one layer of insulation is damaged, the other layer can still continue to protect, greatly reducing the risk of leakage and short circuit.



2. Working principle of double-layer insulated wires

The principle of double-layer insulation can be understood as a redundant safety system:

Electrical isolation

The first layer of insulation is close to the conductor to isolate the current. Even if the first layer is partially damaged under long-term high temperature or wear, the second layer of insulation still maintains insulation to avoid electric shock accidents.



Environmental protection

The outer insulation provides environmental protection such as oil resistance, acid and alkali resistance, and UV resistance. The outer layer material of some high temperature insulated wires can maintain stable performance under high temperature conditions.



Mechanical buffering

The outer layer can also reduce external force impact and bending fatigue, extending the life of the cable.



3. Typical application areas

Double-layer insulated wires are suitable for places with extremely high safety requirements:

  • Electric tools: Handheld devices need to be bent and pulled frequently, and double insulated wire can ensure long-term safe operation.

  • Household appliances: Such as air conditioners, electric water heaters and other high-power equipment, double insulation reduces the risk of short circuits and fires.

  • Industrial automation: Dense wiring inside the electric control cabinet, choose insulated electrical cable to enhance protection and avoid electrical interference.

  • Outdoor installation: Moisture-proof and corrosion-resistant outer layer protects the wires from erosion by harsh environments.



4. Comparison of double-layer insulated wires of different specifications

For easy selection, the following table compares two commonly used UL standard double-layer insulated wires: UL1672 and UL1452.

Model

Rated Temperature

Rated Voltage

Insulation Material

Features and Applications

UL1672

105℃

300V

PVC

Flexible and easy to install; suitable for general industrial and household wiring

UL1452

105℃

600V

PVC

Higher voltage resistance; ideal for high-voltage equipment and industrial control systems

Both are PVC insulated wire, but UL1452 has a higher voltage level and is more suitable for power equipment and harsh working conditions.

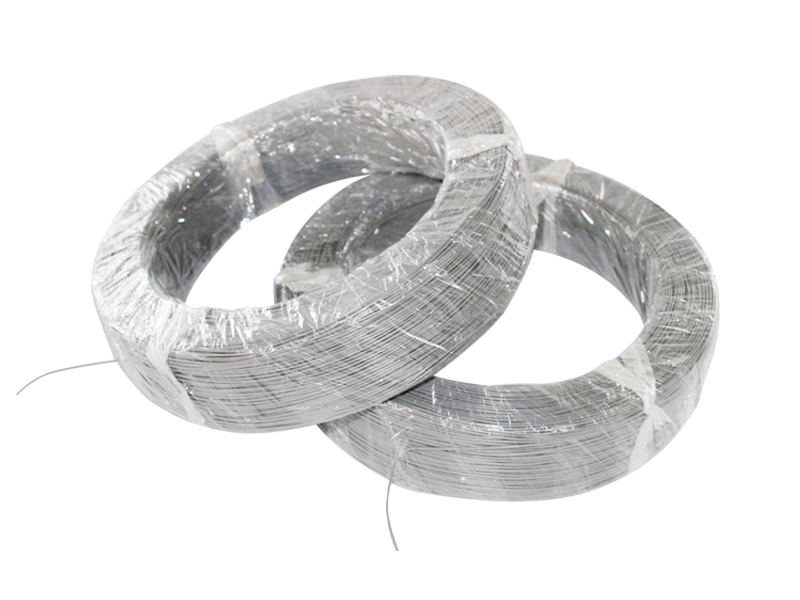

UL1672 105 ℃ 300V PVC Double Insulated Electrical Wire

5. How to choose the right double-layer insulated wire?

When selecting, the following factors should be considered:

  • Working voltage: UL1452 or equivalent products are recommended for applications exceeding 300V.

  • Temperature resistance requirements: If high temperature resistance is required, high temperature insulated wire is preferred.

  • Mechanical strength: If the wiring is susceptible to extrusion and friction, the outer layer of PVC needs to be thickened or a higher strength material needs to be selected.

  • Wiring environment: Oil-resistant and UV-resistant materials are used in outdoor or humid places.



For example, power wiring of automated production lines often requires double-layer insulated wires rated at more than 600V; while general household appliances or low-voltage lighting can meet the 300V specification.

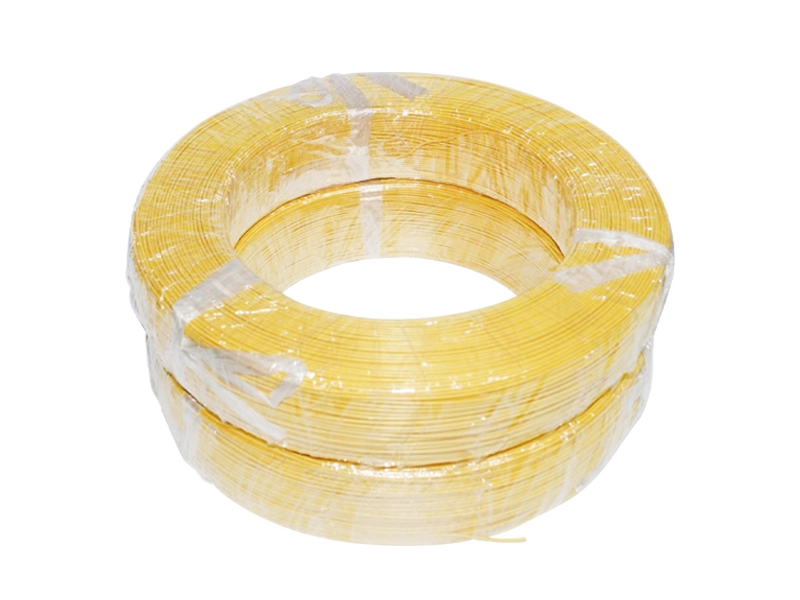

UL1452 105 ℃ 600V PVC Double Insulated Electrical Wire

6. Maintenance points for double-layer insulated wires

  • Regularly check the insulation layer: check for damage, hardening or cracking.

  • Avoid long-term high temperature load: Even high temperature insulated wires need to work within the rated temperature range.

  • Proper wiring: reduce the bending radius to avoid cutting with sharp tools.

  • Use qualified terminals for connection: reduce heating of the joints.



Conclusion

Double-layer insulated wires, with their unique structure and working principle, achieve a perfect combination of safety and durability. Whether it is insulated electrical wire or higher-level insulated electrical cable, they play an irreplaceable role in different industrial fields. Reasonable selection, standardized use and regular maintenance can maximize the advantages of dual protection and ensure the efficiency and safety of electrical systems.
